Dotz Par 36W TRI COB LED Wash Light
List Price: $239.95
Your Price: $179.99
Quantity:
Contact Us
Free Shipping Available

view more images

Dotz Par
Sku #DOT246

OVERVIEW:

  • The ADJ Dotz Par uses advanced COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGB shadows.
  • Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches.
  • The COB LED engine on the Dotz Par is a TRI 36W (3-In-1).
  • The Dotz Par produces wash of 60-degrees (25-degrees if you put on the supplied lens kit).
  • It has 4 DMX Channel modes for programming flexibility, 35 built-in color macros and 5 selectable Dim Curves.
  • The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, DMX and power power daisy-chaining, and a 4-button LCD DMX display.
  • Dotz Par may run in its stand-alone mode from built-in programs, sound actively, from a DMX controller, or from the ADJ Par RF wireless remote control. (sold separately)

    FEATURES/SPECIFICATIONS:
  • High output slim low profile Par fixture with one TRI (3-IN-1) RGB COB LED
    • COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
    • Use as Wash/par or Pixel Mapped for a stunning visual effect
    • 5x Operational modes: Auto Run, Sound Active, Color Macro, Dimmer, and DMX Controlled Mode
    • 4 DMX channel modes: 3, 4, 5 or 9 channel
    • Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
    • Built-In preset colors and programs
    • Flicker Free operation (No flickering on camera)
    • 35 built-in Color Macros
    • LED pulse and strobe effect
    • Electronic Dimming: 0 - 100%
    • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
    • Beam angle: 60-degrees (25-degrees with supplied lens kit)
    • 3-pin XLR chassis mount connectors for DMX linking
    • IEC AC IN/OUT to daisy chain power (up to 13 Dotz Par’s @ 110V and 28 Dotz Par’s @ 230V)
    • Power Draw: 36W total (All LEDs @ Full On)

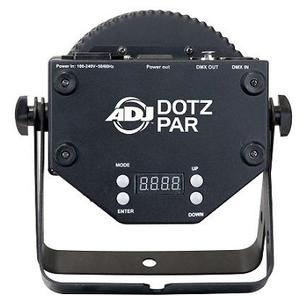

    • 4-button LCD DMX display on rear panel
    • Compatible with
    ADJ Par RF wireless remote control (sold separately)
    • Single yoke allows fixture to be mounted
    • Light Source: 1x 36-Watt COB TRI LED (RGB: 3-IN-1, rated at approximately 50,000 hrs)
    • Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
  • Dimensions (LxWxH): 13. 5” x 5.75” x 5.75”
  • Weight: 5 lbs.
  • Ships From: CA or FL stock
    Average Delivery Time: 3-5 business days**
    (** in stock product, from date of order, standard ground shipping, delivery within the lower 48 US states)




PRODUCT DETAIL
Sku: DotzPar
Brand: American DJ
