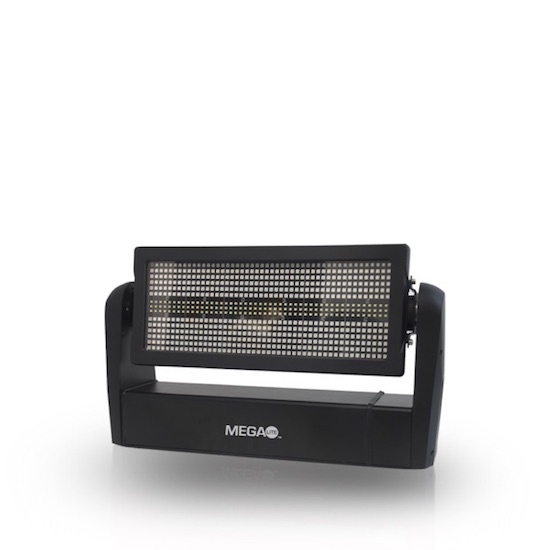

TILTBOT TRIO IP Rated Blinder/Strobe/Wash Effects Light with 190º tilt rotation
List Price: $2,999.00
Your Price: $2,499.00
Quantity:
Contact Us
Free Shipping Available

TILTBOT TRIO
Sku# 1310

IP Rated LED Blinder, Strobe & Wash with 190-degree Tilt Rotation

CHECK OUT OUR 2-PAK FOR GREATER SAVINGS!

OVERVIEW:

  • MEGA-LITE presents the Tiltbot Trio, a new IP rated, versatile LED fixture that can be used as a blinder, strobe and wash. Equipped with 572 1W RGB LEDs and 144 white 8W LEDs it has a 190º tilt rotation. This highly creative design can create a variety of powerful color combinations and with a 90 CRI on white it also produces a bright white output. The unit’s hybrid design and features makes it ideal for a variety of applications.

FEATURES/SPECIFICATIONS:

  • DMX CONNECTORS: Panel Mounted IP67 5-Pin XLR Connectors In/Out
  • POWER CONNECTIONS: Panel Mounted Seetronic IP Rated Power in/out connection (Nema 5-15 to Seetronic power Female cable included)
  • THERMAL: Maximum ambient temperature 104° FMaximum surface temperature 140° F
  • DISPLAY: Digital
  • FASTENING SYSTEM: 2 Quick Release Clamp Mount
  • IP RATING: IP64
  • LED TYPE: 572 RGB 1W and 144 White 8WCRI:90 on White
  • LED LIFETIME: 50,000 to 80,000 hours (Average)
  • POWER CONSUMPTION: Universal 100 - 240V 50/60 Hz Watts: 713W / Amps: 6.22 / PF: .99
  • BALLAST: Electronic
  • PROTOCOL: DMX 512
  • RDM: Yes

    DMX CHANNELS:
  • 6 Mode of Operations
  • Mode 3 Ch: Tilt, Fine Tilt, Strobe
  • Mode 12 Ch: Tilt, Fine Tilt, Dimmer, RGB Intensity, Red, Green, Blue, Duration RGB, Strobe RGB, White, Duration White, Strobe White
  • Mode 14 Ch: Tilt , Fine Tilt, Dimmer, Red, Green, Blue, Macro, Macro Speed, RGB Strobe, White, Macro, Macro Speed, White Strobe, White Dim
  • Mode 23 Ch: Tilt, Fine Tilt, White, W Duration, W Strobe, Macro, Control, RGB intensity, RGB Duration, RGB Strobe, Macro, Red, Green, Blue, FX Fade, Color FX, Color Select, White FX, White Select, Color Back, Intensity, Red back, Green Back, Blue Back
  • Mode 50 Ch: Tilt, Fine Tilt, RGB X 12, White X 12
  • Mode 62 Ch: Tilt , Fine Tilt, Dimmer, Red, Green, Blue, Macro, Macro Speed, RGB Strobe, White, Macro, Macro Speed, White Strobe, White Dim, RGB X 12, White X 12
  • OPERATING MODE: Stand alone 255 step dimmer setting via display, Auto preprogram via display

  • DIMENSIONS (LxWxH):  22.12’’ x 13.12’’ x 5.5"
  • WEIGHT: 23 lbs
  • Ships From TX Stock
  • Average Delivery Time: 3-5 business days**
    (** in stock product, from date of order, standard ground shipping, delivery within the lower 48 US states)




PRODUCT DETAIL
Sku: TILTBOTTRIO
Brand: Mega Lite
