TOMAHAWK high velocity CO2 simulator fog machine with 34 x 8W RGBA LEDs
List Price: $1,950.00
Your Price: $1,559.00
Quantity:
Contact Us
Free Shipping Available

TOMAHAWK
sku RST180

High velocity CO2 simulator fog machine with 34 x 8 watt RGBA LEDs

OVERVIEW:

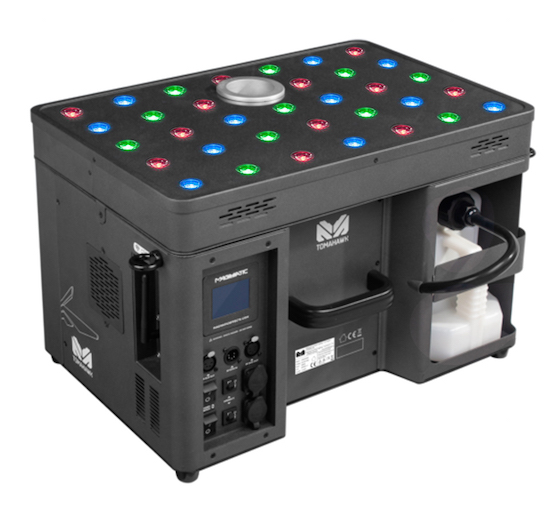

  • The Magmatic Tomahawk is a high velocity CO2 simulator fog machine with 34 x 8 watt, 4 in 1 RGBA LED's for creating dynamic effects. The Tomahawk can burst fog in multiple positions, rotating 180°degrees. Easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminum housing, and optional wired and wireless remote control options.

FEATURES:

  • 85,000 cu.ft per minute
  • 12 second continuous output blast
  • 180°multi position fog burst
  • 34, 8 watt RGBA LED's
  • Durable, tour-ready, aluminum housing

PERFORMANCE:

  • Rated Power: 1450W x2
  • Max Output: 85,000 CFM* (cu ft/min.)
  • Max Continuous Output: 12 Seconds @ Full
  • Max Throw Distance: 25 Feet
  • Initial Ready Time: 12 Minutes
  • Cycling Ready Time: 1 Minute
  • Fluid Capacity: 5.6L
  • Fluid Consumption: 420ml/min.

COMPATIBLE FLUIDS:

  • Atmosity Flash Fog Fluid (AFF-4L)
  • Atmosity Extreme Filtered Fog Fluid (AEF-4L)

CONSTRUCTION:

  • Thermally Protected Heat Exchanger
  • Advanced HPA (high pressure air) Pump Technology
  • Energy Saving Mode with Auto-Clean Process
  • Sealed Fluid Reservoir
  • External Visual Fluid Level Detection

CONTROL:

  • 4 DMX Channel Modes (1 / 5 / 6 / 37)
  • Onboard LCD Touch Control Panel
  • DMX-512 and RDM Protocol Support
  • Optional Magfly Wireless DMX Receiver
  • Optional RF Wireless and Wired Remotes

CONNECTIONS:

  • 5-pin locking XLR, In/Out DMX Connections
  • 4-pin connection for optional wired remote
  • IP65 x2, Locking Input Power Connections
  • With Wired Digital Communication Network

ELECTRICAL/THERMAL:

  • AC 100-120V - 50/60Hz
  • 20A x2 (NFB) Resettable Breakers
  • Max Power Consumption: 3260W
  • Maximum Ambient Temperature (Ta max) 104°F (40°C)
  • Exterior Surface Temperature, Steady State: 140°F (60°C)

APPROVALS/RATINGS:

  • CE | cETLus (pending) | IP22

WEIGHT/DIMENSIONS:

  • Length: 23.03 in. (585mm)
  • Width: 15.43 in. (392mm)
  • Height: 13.58 in. (345mm)
  • Weight: 79.36 lbs. (36kg)




PRODUCT DETAIL
Sku: TOMAHAWK
Brand: Elation Professional
