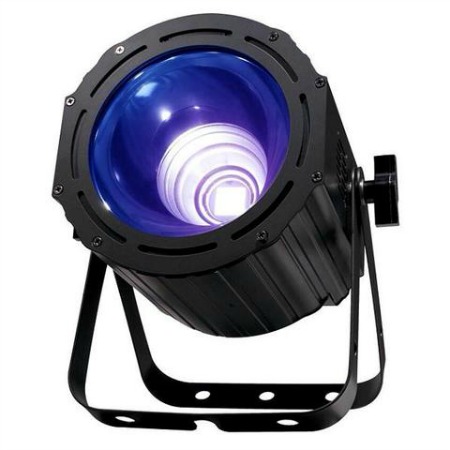

COREpar UV120 ILS Compact Ultra-Wide UV Wash Light with COB (Chip-on-Board) & ILS Compatibility
List Price: $479.99
Your Price: $359.99
Quantity:
Contact Us
Free Shipping Available

COREpar™ UV120 ILS

20W Compact Ultra-Wide UV Wash Light with COB (Chip-on-Board) & ILS Compatibility

OVERVIEW:

  • COREpar UV 120 ILS is a compact ultra-wide 120-watt UV wash with COB (Chip-on-Board) technology. Also on board is ILS compatibility for use in the Integrated Lighting System (ILS) ecosystem that makes creating coordinated light shows across different fixture types easy. COREpar UV 120 ILS also has D-Fi USB compatibility for wireless Master/Slave or DMX control and high-frequency LED dimming lets you achieve flicker-free video operation. The included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds. Its sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit for easy connections. COREpar UV 120 ILS has a robust housing to withstand the harshness of traveling from gig to gig.

FEATURE/SPECIFICATIONS:

  • Compact ultra-wide UV wash with COB (Chip-on-Board) technology.
  • ILS compatibility for use in the ILS ecosystem.
  • D-Fi USB compatibility for wireless Master/Slave or DMX control.
  • Included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds.
  • Withstand the harshness of traveling from gig to gig with a robust housing.
  • Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit.
  • Achieve flicker-free video operation with high-frequency LED dimming.
  • Save time running cables and extension cords by power linking multiple units.
  • Point-and-shoot operation of sound-activated and automated programs with the optional IRC-6 remote.
  • DMX Channels: 1 or 5
  • DMX Connectors: 3-pin XLR
  • Light Source: 1 COB LED (UV) 120 W, (3.34A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle (with lens): 21°
  • Field Angle (with lens): 34°
  • Beam Angle (without lens): 44°
  • Filed Angle (without lens): 94°
  • Cable Length: 5 ft (1.5 m)
  • Power Linking: 5 units @ 120 V; 9 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 119 W, 1.5 A @ 120 V, 60 Hz
  • Power and Current: 118 W, 0.9 A @ 230 V, 50 Hz
  • Bracket Mounting Hole: 13 mm
  • Optional Controllers: IRC-6, D-Fi USB
  • Dimensions 8.9 x 7.4 x 9 in (225 x 185 x 228 mm)
  • Weight: 4.6 lb (2.1 kg)
  • Ships From: FL stock
    Average Delivery Time: 3-5 business days**
    (** in stock product, from date of order, standard ground shipping, delivery within the lower 48 US states)




PRODUCT DETAIL
Sku: COREparUV120ILS
Brand: Chauvet DJ
