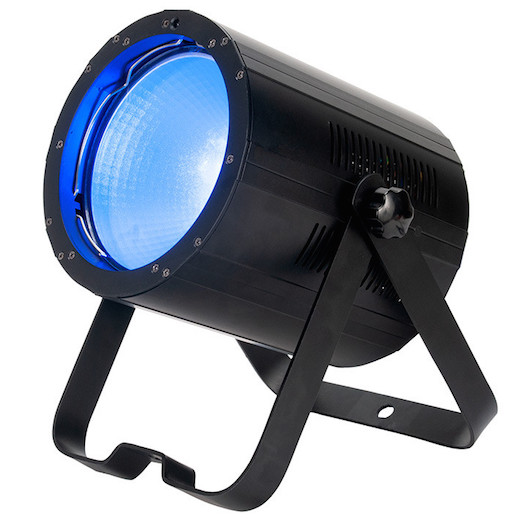

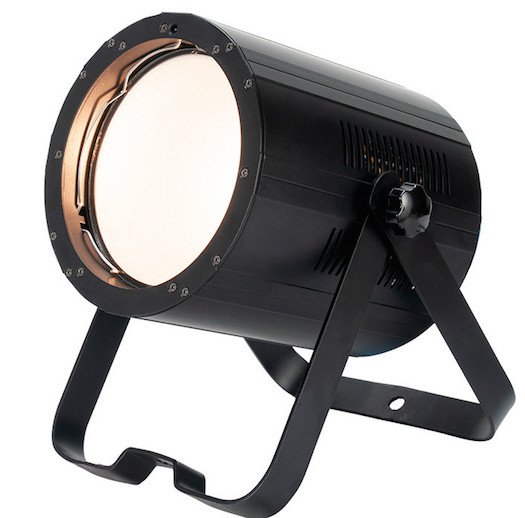

COB Cannon Wash ST DW COB WW/CW LED Par Light (shorter version)
List Price: $699.95
Your Price: $499.99
Contact Us
Free Shipping Available

COB Cannon Wash ST DW
Sku# COB412

Shorter version of the COB Cannon Wash, with a powerful 150W WW/CW COB LED engine - great for smaller spaces


  • The ADJ COB Cannon Wash DW ST is a shorter version of the popular COB Cannon Wash fixture. It uses advanced Warm White / Cool White COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no WW/CW shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the COB Cannon Wash DW ST is a dual WW/CW 2-In-1). It also doubles as an uplight with its scissor yoke that act as legs to set the fixture upright to wash walls and ceilings.
  • The COB Cannon Wash DW ST comes in a black casing and has massive 80-degree beam angle. Easily replaceable 40-degree and 50-degree lens are included so that the beam angle may be changed.

  • It has 6 DMX Channel modes for programming flexibility, built-in color macros and 5 selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, 3-pin & 5-pin DMX and powerCon power daisy-chaining, and a 4-button DMX display. COB Cannon Wash DW ST may run in its stand-alone mode from built-in programs, sound actively or from a DMX controller.


  • Flicker Free operation (No flickering on camera)

    • Use as Wash/par or Pixel Mapped for a stunning

       visual effect

    • Scissor yoke allows fixture to be mounted on truss or

       set on the ground

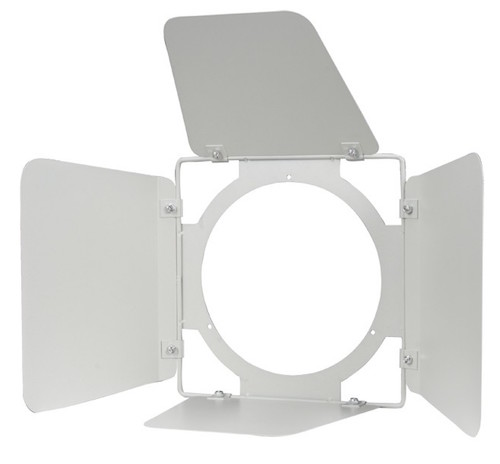

    • Optional Barn Doors (BAR001) sold separately

    • Run all night – No duty cycle


  • Light Source: 1x 150-Watt COB (Chip on Board) Warm White/Cool White LED (2-IN-1) -  rated at approximately 50,000 hrs.
    • CRI: Over 90
    • Light Output: 891 LUX @3M (CW + WW @ 40-degree beam), 711 LUX @3M (CW + WW @ 50-degree beam), 410 LUX @3M (CW + WW @ 80-degree beam)
    • 80-degree beam angle
    • Includes lens kit to change to 40-degrees or 50-degrees beam angle


  •  3-pin & 5-pin connectors for DMX linking

    • powerCon AC IN/OUT to daisy chain power (up to 5 fixtures)


  • Variable white control: 3200K - 6400K
    • 6 DMX Channel modes (1, 2, 3, 4, 5, 6 Ch.)
    • 8 warm white / cool white  built-in color macros
    • 4-button digital DMX display on rear panel
    • Compatible with wireless remote control (sold separately)
    • LED pulse and strobe effect
    • Electronic Dimming: 0 - 100%
    • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
    • Refresh Rate:1KHz


  • Auto sensing power supply: AC 100V/60Hz - 240V/50Hz

    • Power Draw: 132W max

    • Daisy chain up to 5 fixtures maximum


  • Dimensions (LxWxH): 13” x 10” x 7.5” / 330x256x190mm (with bracket);
    8.75” x 7.5” x 7.5” / 218.5x190x190mm
     (without bracket)

  • Weight: 9 lbs. / 4.1 kg.

  • Ships from CA or FL stock
    Average Delivery Time: 3-5 business days**
    (** in stock product, from date of order, standard ground shipping, delivery within the lower 48 US states)


Sku: COBCannonWashSTDW
Brand: American DJ
