Power/Data Supply for ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120
OVERVIEW:

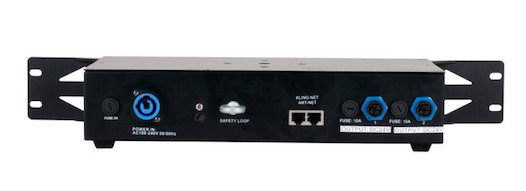

Pixie Driver 2000™ is designed specifically for the ADJ Pixie Strip 30, 60, and 120 series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 2,040 max pixels via Kling-Net, and 340 max pixels via Art-Net and sACN (streaming ACN) protocols.The Pixie Driver 2000 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (2) outputs which use proprietary, 4pin combo cables (sold separately) that supply power and data to each pixel strip, (available in lengths from 2 to 50 feet). The Pixie Driver 2000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
CONTROL FEATURES:
• Power / data supply for ADJ Lighting Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120
• Two 4-pin DC24V power/data outputs to Pixie Strips
MOUNTING OPTIONS
• Bolt to add a clamp to hang from truss (clamp and truss not included)
• Includes 19-inch rack mount ears
• Safety eye
ELECTRICAL
• Multi-voltage operation: AC 110-240V, 50/60Hz
• Power Consumption: 400W max
• -4°F to 113°F (-20°C to 45°C)
APPROVALS
CE | cETLus
ACCESSORIES (Call For Pricing)
PSLC1 (PIX158): 1-foot Pixie Strip Link Cable
PSLC3 (PIX174): 3-foot Pixie Strip Link Cable
PSLC5 (PIX188): 5-foot Pixie Strip Link Cable
PSLC10 (PIX200): 10-foot Pixie Strip Link Cable
PSLC15 (PIX213): 15-foot Pixie Strip Link Cable
PSLC25 (PIX229): 25-foot Pixie Strip Link Cable
PSLC50 (PIX242): 50-foot Pixie Strip Link Cable
PHYSICAL DIMS/WT
• Dimensions (LxWxH): 18.9” x 5.9” x 2.56” / 480x150x65mm
• Weight: 6.17 lbs. / 2.8 kg.
