SIXPAR 100 IP™
Sku# SIX001

Elation Professional's SixPar Series of indoor and outdoor PAR color changers features a revolutionary six-color LED multi-chip that provides an expanded palette of colors, including ambers, true whites, and even ultraviolet.

OVERVIEW:

• The exterior IP65 rated SIXPAR 100 IP™ features (7) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 15° beam and 25° field angles.
• The fixture has electronic strobe and dimming (0-100%), 5 variable dimming curve modes.
• The fixture comes with a dual yoke / floor stand.
• Other notable features include; multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 89W max power consumption, and a multi-voltage universal auto switching power supply (110-250v).

FEATURES:

• IP-65 RATED
  15° Beam 25° Field Angles
  5 Variable Dimming Curve Modes
  Dual Yoke / Floor Stand
  Multiple Unit Power Linking
  RDM - Remote Device Management
  Rugged Die-Cast Aluminum Exterior
  Flicker Free Operation for TV and FILM

SOURCE

• (7) 12W 6-in-1 RGBAW+UV LEDs
  100,000 Hour Average LED Life

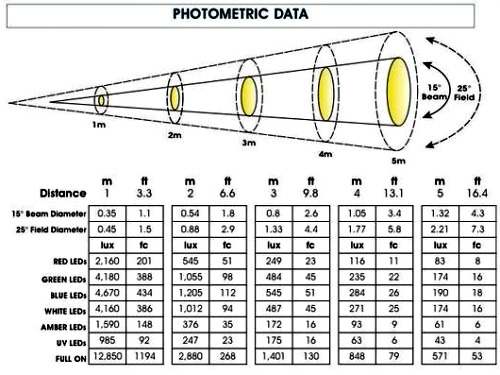

PHOTOMETRIC DATA

• 12,850 LUX 1,194 FC @3.3’ (1m) (15° Full ON)
  2,880 LUX 268 FC @6.6’ (2m) (15° Full ON)
  1,401 LUX 130 FC @9.8’ (3m) (15° Full ON)
  848 LUX 79 FC @13.1’ (4m) (15° Full ON)
  571 LUX 54 FC @16.5’ (5m) (15° Full ON)

EFFECTS

• Electronic Strobe
  Color and Chase Macros
  Electronic Dimming: 0% - 100%
  5 Variable Dimming Curve Modes

CONTROL / CONNECTIONS

• (4) DMX Channel Modes (6 / 7 / 8 / 12)
  (4) Button Touch Control Panel
  LCD Menu Display
  IP DMX In/Out
  IP Power In/Out

ELECTRICAL / THERMAL

• AC 110-250V - 50/60Hz
  89W Max Power Consumption
  Power Linking: 12pcs @110V / 25pcs @240V
  68°F to 113°F (20°C to 45°C)

APPROVALS / RATINGS

• CE Approved
  cETLus
  IP65 Rated

INSTALLATION

• Rigging: Integrated Dual Yoke / Floor StandWorking Position: Any (360°)

INCLUDED ITEMS

• Male Edison to IP Female Power Cable 6,6 ft. (2m)
  Male 3pin XLR to IP Female DMX Input Cable 3.3 ft (1m)
  Female 3pin XLR to IP Male DMX Output Cable 3.3 ft (1m)

SIZE / WEIGHT

• Length: 10.1”
  Width: 6.2”
  Vertical Height: 9.6”

• Weight: 9.5 lbs

• Ships from CA or FL stock
  Average Delivery Time: 3-5 business days**
  (** in stock product, from date of order, standard ground shipping, delivery within the lower 48 US states)
