MEMO DMX REMOTE wall mountable remote for use with MEMO DMX main unit
List Price: $699.00
Your Price: $579.00
Quantity:
Contact Us
Free Shipping Available

view more images

MEMO DMX REMOTE
Sku MC1091

Remote Unit for use with MEMO DMX main unit (MC-1090) Wall Mountable DMX Scene Recorder (sold separately)

OVERVIEW:

  • The Mega Lite MEMO DMX REMOTE (MC1091) is designed to work with the MEMO DMX (MC1090) main unit (sold separately).  Either fit in a standard 2-gang electrical box and has a rugged anodized wall plate which gives it a very professional presentation.

KEY FEATURES:

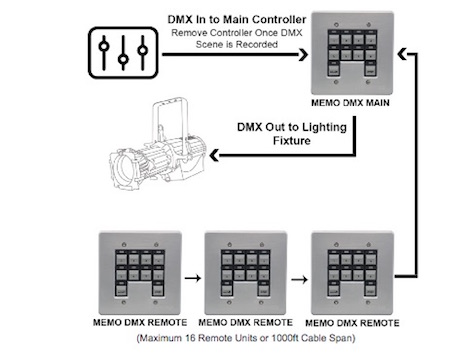

  • Expandable up to 32 remote units (Main Unit: MC-1090 required/sold separately)
  • Fits in a USA standard two-gang electrical box
  • Built with a rugged aluminum face plate
  • Up to 12 Remotes on a single power supply
  • Maximum 16 Remotes on a single 1000-ft cable span

  • Click here for the DATA SHEET for this product (pdf)

SPECIFICATIONS:

  • ITEM NUMBER: Remote Unit: MC-1091 (Main Unit: MC-1090 required/sold separately)
  • REMOTE CONNECTIONS: 4 Pin Screw Type Phoenix In and 4 Pin Phoenix Out
  • POWER CONNECTION: 2 Pin Screw Type Phoenix In
  • MOUNTING SYSTEM: Fits USA Standard 2 Gang Electrical Box
  • POWER SUPPLY: Auto Switch100V-240V 50/60 HZ Mean Well APV-12-12 (included in Main unit)
  • POWER LINK: Can Link up to 12 Remote Units Per Power Supply
  • DMX REMOTE UNIT: All MEMO DMX Remote Units Trigger the MEMO DMX Main Unit (MC-1091 Remotes sold separately)
  • UNIT DIMENSIONS: 4.7" x 4.6" x 4.7"
  • UNIT WEIGHT: .65 lbs
  • Shipping Weight: 1 lbs (dimensional packaged)
  • Ships From TX Stock
  • Average Delivery Time: 3-5 business days**
    (** in stock product, from date of order, standard ground shipping, delivery within the lower 48 US states)

PRODUCT DETAIL
Sku: MEMODMXREMOTE
Brand: Mega Lite
