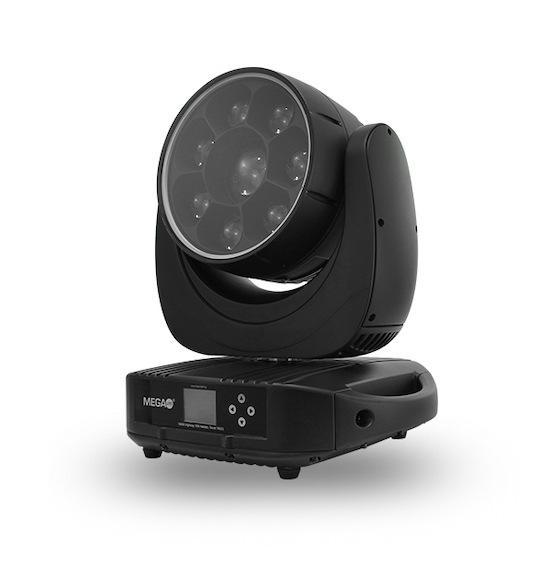

OUTERBOT WASH 340 IP65 outdoor rated 340 watt moving head wash fixture
List Price: $5,159.00
Your Price: $4,299.00
Quantity:
Contact Us
Free Shipping Available

view more images

OUTERBOT WASH 340
Sku# 1313

340 Watt IP65 wash fixture suitable for outdoor applications

OVERVIEW:

The Outerbot Wash 340 is equipped with three lighting elements. First is the pixel wash that can zoom creating a multi-color wash effect. The second element is a Moonflower effect, and the third is an RGB Halo. Combining these elements creates a unique tool for your lighting arsenal.
This unit is IP65-rated, making it suitable for any of your outdoor needs.

Pixel Wash
The seven outer 40W RGBW LEDs allow for individual pixel control with 16-bit dimming and a 7°-33° zoom range. This fixture can create a slight beam or a smooth wash and it also features multiple wash presets for strobing, pixel control, and has 64 built-in macros.

Moonflower Effect

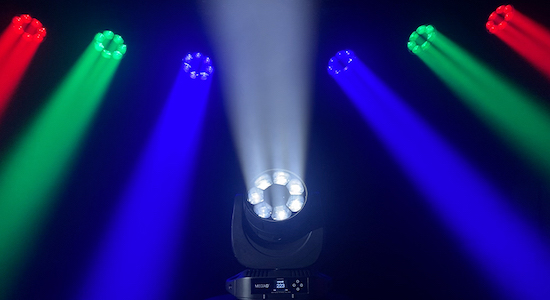

Equipped with a center 60W RGBW LED that can produce a bright, powerful, and even projection. This fixture creates multi-colored beams of light that produce an explosion of colors in a Moonflower effect to transform any room. This effect can be further enhanced using its bi-directional and speed-control prism.

RGB Halo
This unit offers an eye-candy Halo Ring with 68 RGB SMD LEDs. It has a variety of hues and highly saturated colors with its 33-presets and an additional 17 macros, making this feature easy to control.

IP Rated
This unit is IP65-rated, adding a level of dust and water protection. This Ingress Protection rating certifies the unit suitable for multiple applications such as outdoor, wet and/or dusty settings


Mechanical Specifications:

IP Rating: 65
Housing: Die Cast Aluminum
Fastening System: Quick Release Clamp Mount, By Directional
Power Connection: Seetronics SACX3FX IP 65 Panel Mount
Signal Connection: 5 Pin XLR In and Out & Artnet RJ45 In & Out
Pan Movement: 540° (16 Bit, 3 Phase Stepper Motor)
Tilt Movement: 220° (16 Bit, 3 Phase Stepper Motor)
Zoom Angle: 7° Beam Angle to 33° Field Angle (16 Bit)
Operating Temperature: -4°F - 113°F
Fuse: Panel Mount Fuse (5x20mm T6.5A250V


Electrical Specifications:


Power Supply: Electronic 100-240V AC 50/60
Power Consumption: 2.86 Amps / 338 Watts @120V
Outer LED
Light Source: Seven 40W RGBW LEDs (16 Bit Dimming)
Color Temperature White: 8436K (White Emitter Only)
CRI (Warm White): 73
Segments: 7
Lumen Output: 5654lm (Narrow) & 3546lm (Wide)
Center LED
Light Source: 60W RGBW LED
Color Temperature White: 8380K
Moonflower Prism: Bi-Directional, Speed Control
RGB Halo
Light Source: 68 RGB SMD LED


Control System:

Control Protocols: DMX 512, Artnet, SACN
RDM: Yes
Channel Modes: SSP 25CH, TOUR 30CH, TR16 37CH, CMY
31CH, HSIC 27CH, PIXEL 52CH
Display: Auto Flip Display



Main Power Connections:

Power Link: Max 6 Units at 110V & 12 units at 220V
DMX-512: Yes/No


Photometrics:

Lumens @ Full Output (Narrow): 5654
Efficacy: 20 lm/W
Lumens @ Full Output (Wide): 3546
Efficacy: 13 lm/W
Red Emitter Peak Wavelength: 637nm
Green Emitter Peak Wavelength: 518nm
Blue Emitter Peak Wavelength: 447nm
White Emitter Peak Wavelength: 44nm
Nominal Beam Angle; 7°

Included Items:

Quick Release Clamp Mount: 2 (ITEM# 1210-HOU-QUI)
Safety Cable: 1 (ITEM# TXASC
Power Cable: 1
User Manual: 1

Dimensions / Weight:

Fixture Size: 16.5” X 14.5” X 19.12”
Fixture Weight: 56LB (25.40 kg

Ships From: TX stock
Average Delivery Time: 3-5 business days**
(** in stock product, from date of order, standard ground shipping, delivery within the lower 48 US states)




PRODUCT DETAIL
Sku: OUTERBOTWASH340
Brand: Mega Lite
