ELECTRAPIX BAR 8 PAK
sku# ELE188
Package of (6) IP65 Outdoor Rated Battery Powered LED linear fixture with 8 x 20-Watt 6-IN-1 RGBAL+UV HEX LEDs, Road Case & More!
OVERVIEW:

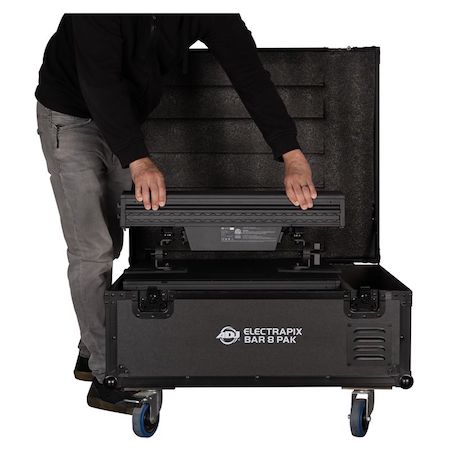

The ElectraPix Bar 8 Pak features six (6) ElectraPix Bar 8 Battery powered, wireless DMX LED linear fixtures housed in a robust road case with dedicated charging slots for each fixture. It is supplied with an ADJ UC-IR24 remote control that allows simple color selection as well as a power cable which plugs into the side of the case for in-case charging.
ElectraPix Bar 8 Pak Includes:
(6) ElectraPix Bar 8 Pak (Fixtures)
(1) ElectraPix Bar 8 FC (Flight Case)
(6) ElectraPix Bar 8 IPCB (Charging bases and power supplies)
(1) UC-IR24 Wireless Infrared Controller
(6) IP65 Locking Power Cable
Features:
Houses / Transports and Charges (6) ElectraPix Bar 8™ fixtures
Flight Case Electrical / Thermal:
Power Input: AC100VAC~240VAC, 50/60Hz
IP65 Power Locking Input and Output
Max Power Consumption: 400 Watts
Power Draw: 4A @120Vac., 2A @230VAC.
Charge status indicator
14°F to 113°F (-10°C to 45°C)
ElectraPix Bar 8 Pak Dimensions / Weight (loaded case with 6 fixtures):
Length: 31.8” (807.5mm)
Width: 27.42” (696.4mm)
Vertical Height: 17.4” (441.9mm)
Loaded Weight: 174 lbs. (79 kg)
ElectraPix Bar 8 Features:
8 Pixel, Hex Color LED (RGBAL+UV) LED Bar
Battery or Wall Powered
Up to 20 Hour Battery Operation
Battery Operation (Menu Option)
Individual Pixel Control
Built-In Foreground LED Programs
Built-In Background LED Programs
Variable White Color Temperature Control (2,700K ~ 9,900K)
English & Spanish User Menu
Built-In Alarm
Color Calibrated LED's
User Selectable LED Refresh Rates (900Hz ~ 25K)
6 User Selectable Dim Modes
4 User Selectable Dim Curves
Electronic Strobe (0.3Hz ~ 11Hz)
Electronic Dimming
Light Source:
(8) 20W Hex Color RGBAL+UV Foreground LED's
(32) 0.2W RGB Background LED's
50,000 Hour Average Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Optical:
2,300K ~ 9,900K White Color Temperature Range
17° Beam Angle
45mm Lens Diameter x8
Physical:
IP65 Housing
OLED Digital display
L Track system for locking accessories / rigging
Glare Shield
Diffusion Filter slot
Angle adjustable feet
Horizontal slide lock to attach additional ElectraPix Bar 8 or ElectraPix Bar 16
Control:
DMX512
Aria X2 Wireless DMX
Bluetooth
RDM and RDM Net Compatible
IR (Includes UCIR24 wireless remote)
(4) DMX Channel Modes (5, 6, 9, 13, 21, 24, 48, 52 & 66 Channel modes)
On-board Manual Control Mode
Primary / Secondary Mode
Connections:
5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
Outdoor Locking Power Sockets
Battery Charging Socket
Power:
AC100-240V/50Hz-60Hz Input
60W Power Consumption
Link 15 pieces @120VAC or 28 pieces @ 230VAC
Battery:
Rechargeable Lithium ion
Battery Capacity: 7,000mAh
Battery Voltage: 22.2V
Charge Time: 6 Hours (To Full)
5 Hour Standard Operation at Full Output and 20 Hour Saver Mode Operation at Full Output Selectable in the menu
Battery Cycles: 500
Thermal:
Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Approvals/Ratings:
CE
cETLus (Pending)
FCC
IP65
Included Accessories:
(1) Outdoor Locking Power Cable
(1) UCIR24 Remote
(1) 20° Diffusion Filter
Optional Accessories:
Accu Stand VFB1 (Floor Base)
LTrack A2 (LTrack Adapter Only)
LTrack CA2 (LTrack Adapter with Narrow Clamp)
Dimensions / Weight:
Length: 3.72” (94.5mm) Width: 23.1” (586.7mm) Height: 10.6” (268.7mm)
Weight: 16.1 lbs. (7.3 kg)
