LINEBOT Q480 Linear RGBW LED Light Curtain Effect, 12 LEDs with individual pixel control
List Price: $1,919.00
Your Price: $1,599.00
Quantity:
Contact Us
Free Shipping Available
Description

LINEBOT Q480
sku 1188

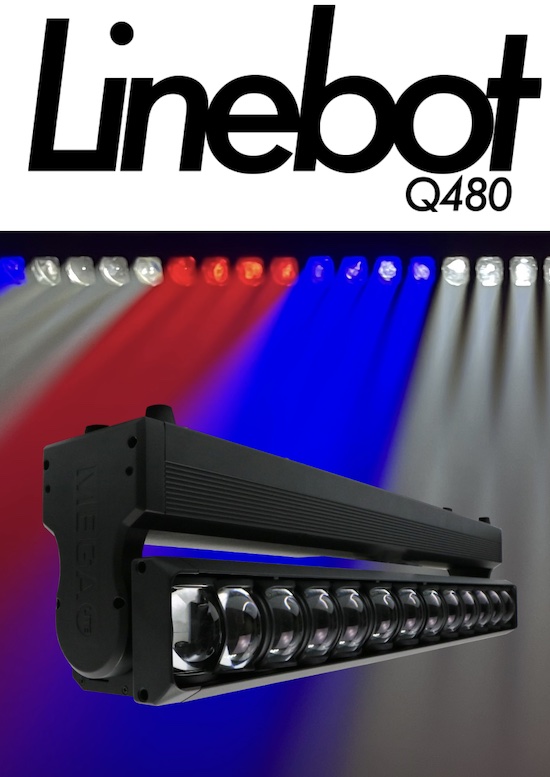

Linear RGBW LED Light Curtain Effect, Powered by 12 40-Watt LEDs with individual pixel control

OVERVIEW:

  • Create an unforgettable show with the Linebot Q480. Powered by 12 40-Watt RGBW LEDs, this bot can be used to create desired effects for a variety of applications. Featuring a broad spectrum of colors, it can produce pastel to saturated color combinations. Combined with the 12 individual pixel mapping control, the Linebot Q480 was designed to spread creativity in linear lighting.

    The high output LEDs can be used to produce aerial effects or highlight performers and objects on or off stage. With a 3º to 54º zoom range, the unit offers two zoom sections for greater control. It gives the incredible ability to create piercing narrow angles that can form a harmonious curtain of light effect or wide angle wash. The motorized 210º tilt is further enhanced with the 16 bit movement, for a seamless tilt rotation.

    It can be grounded or mounted using the included dual quick-release clamps. The removable side alignment guides allow multiple units to be daisy chained efficiently. Take your show to the next level with the Linebot Q480.

FEATURES/SPECIFICATIONS:

TILT ANGLE: 210° 8/16 bit
DMX CONNECTORS: Panel Mounted 5-Pin XLR Connectors In/Out
POWER CONNECTIONS: Panel Mounted Seetronic Type Power In/Out Connection (Nema 5-15 to Seetronic Power Female Cable Included)
THERMAL: Maximum Ambient Temperature: 104°F | Maximum Surface Temperature: 140°F
DISPLAY: Digital
FASTENING SYSTEM: 2 Quick Release Clamp Mount
LENS ANGLE: 3° - 54°
ZOOM CONTROL: 2 Zoom Sections | Zoom 1: 1-6 / Zoom 2: 7-12
GUIDES: Removable Side Alignment Guides
LED TYPE: 40Watt RGBW
LED QTY: 12
POWER INPUT: Universal 100 - 240V 50/60 Hz
BALLAST: Electronic
POWER CONSUMPTION: Watts: 590W | Amps: 5.04A
PIXEL CONTROL: 12 Pixel Control
PROTOCOL: DMX 512
DMX CHANNELS: 2 Modes of Operation (See Manual)
OPERATING MODE: Stand Alone 255 Step Dimmer Setting via Display | Auto Preprogram via Display



  • Dimensions: 40.15" L x 5.12 W x 11.75" H
  • Weight: 38.3 lbs
  • Ships From TX Stock
  • Average Delivery Time: 3-5 business days**
    (** in stock product, from date of order, standard ground shipping, delivery within the lower 48 US states)


PRODUCT DETAIL
Sku: LINEBOTQ480
Brand: Mega Lite
