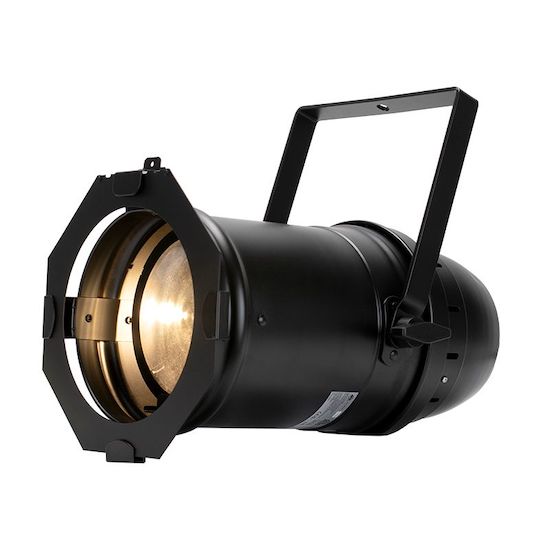

PAR Z100 3K2
Sku# PAR321
A modern twist on the classic halogen Par Can, the Par Z100 3K2 runs on a 100-Watt, 3000K Warm White C.O.B. LED engine boasting a CRI exceeding 90, with 5 manually adjustable zoom beam angles
OVERVIEW:
The ADJ Lighting Par Z100 3K2 offers the classic par can look with the modern benefits of LED. The PAR Z100 3K2, looks exactly the same as a regular black Par can, but inside its casing is housed a powerful LED light source. Offering output comparable to a 1000W sealed beam Par, but producing a fraction of the excess heat, making it ideal for illuminating stages while ensuring that performers won’t get too hot.
The Par Z100 3K2 is powered by a 100-Watt, 3000K Warm White C.O.B. LED engine with a CRI greater that 90. The 3000K color temperature offers a good approximation to the output of a traditional lamp. There are 5 manual zoom beam angles to choose from: 9°, 15°, 20°, 25° or 30.° A traditional par can gel frame is included so that designers can diffusion filter for even more control of the fixture’s output.
Advanced features include a 4-button DMX OLED display menu, adjustable strobe rates, 6 dim modes and electronic dimming form 1-100%. The fixture is RDM and RDM Net compatible. On the back of the fixture there are locking power In/Out sockets to daisy chain power, plus 5-pin DMX data In/Out sockets.
SPECIFICATIONS:
Optical:
• 100-Watt, 3000K Warm White C.O.B. LED (Chip On Board)
• Life expectancy: rated at 50,000 hrs.
• Manual Zoom: 9°, 15°, 20°, 25° or 30°
• Zoom Ration: 3.3:1
Photometrics:
• 5885 Lux (Zoomed In to 9° @ 5 meters)
• 767 Lux (Zoomed Out to 25° @ 5 meters)
• CRI: >90
Connection:
• DMX: 5-pin DMX In/Out
• With Wired Digital Communication Network
• Locking power In/Out connections
Control:
• DMX-512
• 3 DMX control modes: (1, 3 & 4 Ch. modes)
• RDM and RDM Net Compatible
• Primary/Secondary, stand-alone mode
• On-board manual control mode
Features:
• 4-button DMX menu display on rear panel
• OLED display
• Adjustable latch to manually change beam angle
• Includes gel frame for diffusion filters (Diffusion filter sold separately)
• Strobe Rate: 0.6Hz to 7.5Hz
• Refresh Rate: 1.2KHz
• Electronic Dimming: 0 - 100%
• 6 Dim Modes
Electrical:
• Power Draw Total (@ Full On): 115W
• Power Consumption: 0.964A @ 120V/60Hz ; 0.5A @ 220V/50Hz
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Daisy chain: 15 fixtures @ 120V; 25 fixtures @ 230V
• Fuse protected: 3A/250V
Dimensions / Weight:
• Dimensions (LxWxH): 19.25” x 10.94” x 10.68” / 489 x 277.7 x 271.1mm
• Weight: 7.94lbs. / 3.6kg.
• Ships From: CA stock
• Average Delivery Time: 3-5 business days**
(** in stock product, from date of order, standard ground shipping, delivery within the lower 48 US states)
Certifications:
• IP20
• CE & FCC
• ETL Approved
