Take control with multiple operation modes, including DMX, Remote Device Management (RDM), sound activation, or show mode. Adjust settings effortlessly using the intuitive 4-button control menu and digital display. The barrel mirror ensures rapid, fluid movements with a range of 180° on the X-axis and a full 360° on the Y-axis. Fine-tune the beams and GOBO patterns using the manual focusing knob for ultimate precision.
The fixture is equipped with 5-pin DMX In/Out connections, an IP65 locking power input, and a safety loop for secure mounting. Compact and lightweight, the Vortex 150 is ideal for tight spaces, low ceilings, and high-energy venues such as bars, lounges, roller rinks, and fun centers.
Light Source:
• 150W White LED (30,000 Hrs.)
Barrel Mirror:
• Barrel Movement: X-Axis = 180°, Y-Axis 360°
• Beam Angle: Multiple Beams, 3° each
• Beam Focusing Knob
Colors/GOBOs:
• 11 Color / Gobo combinations (2 beam reducers)
• Color/Gobo Shake
Control:
• DMX512, RDM, Sound and Show Mode
• 0.5-33Hz Strobe Rate
• User selectable LED Refresh Rate
• 6 Built-In Light Shows
• DMX Modes: 2 DMX Control Modes (10 & 12 Channels)
• 4-Button Digital Display
Connections:
• 5-pin DMX In/Out
• IP65 Locking power input
• Safety eye to attach a safety cable
Electrical:
• Power: 100-230VAC, 50/60HZ
• Power Consumption: 195W@ 120V., 175W@230V.
Approvals:
• CE and cETLus (Pending)
• IP20
Included:
• Adjustable Angle Hanging Bracket
• Power Cable
Size / Weight:
• Dimensions (LxWxH): 13.35" x 9.28" x 13.17" (339x235.6x334.4mm)
• Weight: 11.24 lbs. (5.1Kg)

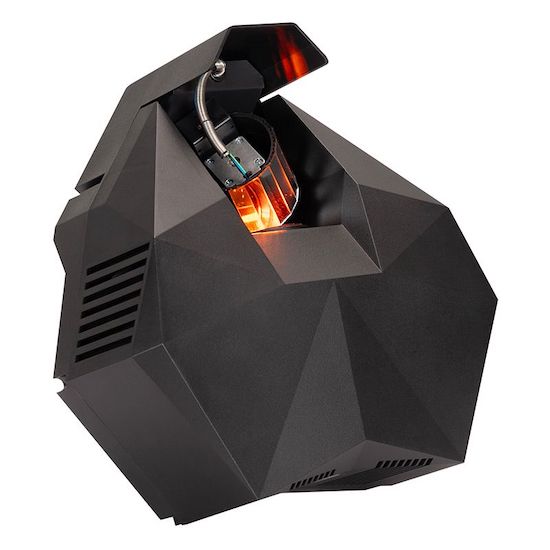

VORTEX 150 LED moonflower/strobe effect featuring a barrel mirrored scanner
