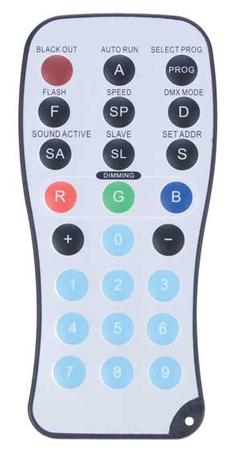

LED RC Remote
Infrared Remote Control for use with select ADJ RGB 3-COLOR LED wash fixtures
The ADJ LED RC infrared remote has many different functions and gives you complete control of any LED RC Remote compatible fixture.
To control the desired fixture you must aim the controller at the front of the fixture and be no more the 30 feet away.
To use the ADJ LED RC you must first activate the fixtures infrared receiver, to activate the receiver refer to the fixture's operation manual.
Black Out: Turns fixture On/Off
Auto Run: Automatically run through built-in programs This button will run an automatic program. You can control the speed of the Auto Run by pressing the SPEED button first and then pressing the “+” and “-” buttons.
Program Selection: Access units built-in programs This button will let you access the units built-in programs. Pressing this button and then press the “+” or “-” to navigate through the built-in programs.
Flash: Strobe effect This button will activate the strobe effect. You can control the flash rate by pressing the “+” and “-” buttons. Press this button again to exit strobe mode.
Speed: Control speed of Auto Run Press this button and use the “+” & “-” buttons to adjust the speed of the Auto run.
DMX Mode Select This button will let you select which DMX mode you want to use. Some fixtures will come with different DMX channel modes. This button will switch between the different modes. Refer to the fixture's operators manual for DMX modes, values, and traits.
Sound Active: Activates sound active mode
Slave: Designates the fixture as a “slave” fixture in the Master/Slave configuration
Set Address: Set DMX Address on a fixture Press this button to set the DMX address. Press this button first, then press the numbers to set the address.
Example: Set DMX Address 1 Press “S-0-0-1”
RGB Buttons: Adjust RGB colors with the “+” and “-“ buttons + and – Buttons: Adjust flash rate, speed of the Auto Run and Program Selection
Shipping Weight; 2 lbs (dimensional packaging)
Ships From: CA or FL stock Average Delivery Time: 3-5 business days** (** in stock product, from date of order, standard ground shipping, delivery within the lower 48 US states)
