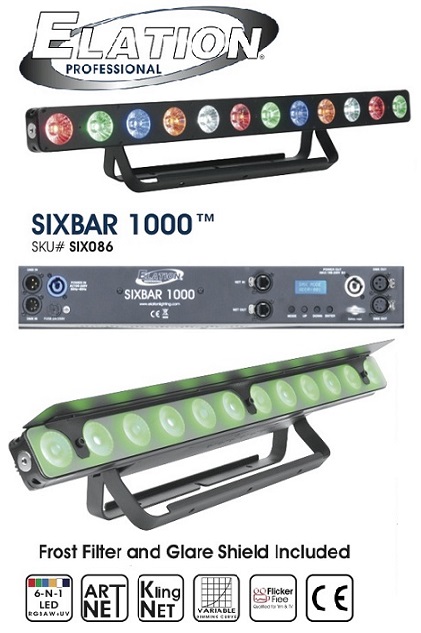

SIXBAR 1000
sku SIX086

Linear LED strip with (12) 12W 6-IN-1 RGBAW+UV LEDs, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects

OVERVIEW:

• The SIXBAR 1000™ features (12) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield included, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

FEATURES/SPECIFICATIONS:

• 30° Beam Angle

• ArtNet and KlingNet Support

• RDM - Remote Device Management

• Individual LED Control

• Variable Dimming Curve Modes

• Multiple Unit Power Linking

• Rugged Die-Cast Aluminum Exterior

• Flicker Free Operation for TV and FILM


SOURCE

• (12) 12W 6-in-1 RGBAW+UV LEDs
• 100,000 Hour Average LED Life


PHOTOMETRIC DATA

• 8,500 LUX 790 FC @3.3’ (1m) (30° Full ON)

• 3,660 LUX 340 FC @6.6’ (2m) (30° Full ON)

• 2,040 LUX 190 FC @9.8’ (3m) (30° Full ON)

• 1,290 LUX 120 FC @13.1’ (4m) (30° Full ON)

• 878 LUX 82 FC @16.4’ (5m) (30° Full ON)

EFFECTS

• Strobe and Chase Effects
• Individual LED Control

• Variable and Selectable Dimming Curves


CONTROL / CONNECTIONS

• 8 DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)

• 4 Button Control Panel and LCD Menu Display

• ArtNet + KlingNET Protocol Support

• RDM (Remote Device Management)

• (2) etherCON Ports

• 3pin and 5pin DMX In/Out

• powerCON Power In/Out

ELECTRICAL / THERMAL

• AC 110-240V - 50/60Hz

• 145W Max Power Consumption

• Power Linking: 6pcs @110V / 15pcs @240V

• 5°F to 113°F (-15°C to 45°C)

• UV Wavelength: 395nm

APPROVALS / RATINGS

• CE | IP20
• ETLus

INSTALLATION

• Rigging: Integrated Dual Rigging Brackets
• Working Position: Any (360°)


INCLUDED ITEMS

• powerCON Cable
• Frost Filter

• Glare Shield


SIZE / WEIGHT

• Length: 35.4” (900mm)

• Width: 8.1” (206.4mm) *with included glare shield

• Vertical Height: 6.1” (155mm)

• Weight: 16.0 lbs. (7.3 kg)
• Ships From: CA or FL stock
