FOCUS FLEX LED moving head creates vibrant washes, punchy beams, and eye-catching pixel effects
List Price: $2,299.95
Your Price: $1,649.99
Quantity:
Contact Us
Free Shipping Available

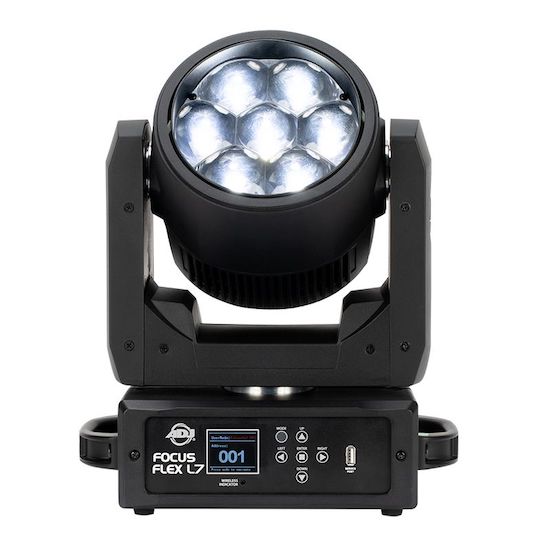

Focus Flex
Sku# FOC710

Compact, quick and punchy, the Focus Flex from ADJ Lighting is a versatile moving head luminaire capable of creating wash, beam and pixel effects

OVERVIEW:

The Focus Flex offers lighting designers the creative flexibility of generating vibrant washes, punchy beams, and eye-catching pixel effects from one compact and quick automated luminaire. Powered by an array of seven potent 40-Watt 4-in-1 RGBW color mixing LEDs, each of which can be controlled independently, it offers a motorized zoom function providing the versatility of a variable beam angle of between 4 and 31-degrees. With a variety of DMX mode options appropriate to different applications, it offers virtual CMY color mixing and virtual foreground and background color wheel control as well as a choice of seven different DMX modes ranging from 16 to 28 channels.

Light Source:


• 7 x 40-Watt RGBW LEDs (50,000 hr.)
• CRI: 83
• CT: 6600K
• 50,900 lux / 4° beam @ 16’
• 1,310 lux / 31° beam @ 16’



Features:


• Moving Head Pixel Wash with Pixel Effects
• Electronic Strobe / Dimmer
• Pan/Tilt: 540/630 x 265
• Motorized Zoom: 4 ~ 31°
• Color Calibrated Pixels so units match from batch to batch
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• Fan Cooled
• Antenna for WiFLY EXR Wireless DMX


Colors:


• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Built-In Color Macros
• 2700k ~ 10,000 Liner White Color Control
• Color Temperature Presets: 2700, 3000, 3200, 4000, 4500, 5000, 5600, 6500, 8000 and 10,000K





Control:

• 7 DMX Modes - 16/25/31/42/50/25 (CMY)/28 (CMY) Channels
• Color LCD display with 6-button function menu
• Control Mode: DMX512 or internal programs
• Built-In Effect Pixel Programs with Speed and Fade Control
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network
• RDM (Remote Device Management)
• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)


Pan/Tilt:

• Pan: 540/630 degrees
• Tilt: 265 degrees


Connections:

• DMX Connections: 3 & 5-pin XLR In/Out
• Power Connections: Indoor PowerLock In/Thru

Electrical:

• Multi-voltage operation: 90-240V, 47/63Hz
• Max power consumption: 340W @120v



Approvals/Ratings:


ETL Approved / CE Certified
IP20


What's Included:


• Omega Brackets
• 1.83M locking power cable



Dimensions / Weight:

• Dimensions (LxWxH): 9.17”L x 6.97”W x 13.8”H (233x177x349mm)
• Weight: 15.5lbs (7kg)

Ships From: CA stock
Average Delivery Time: 3-5 business days**
(** in stock product, from date of order, standard ground shipping, delivery within the lower 48 US states)






PRODUCT DETAIL
Sku: FocusFlex
Brand: American DJ
